- PROTON 360 Degree PIR Surface IP20 White

RPR360PIRS-01

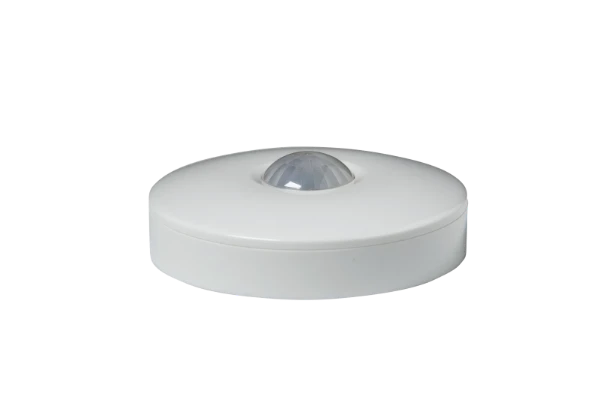

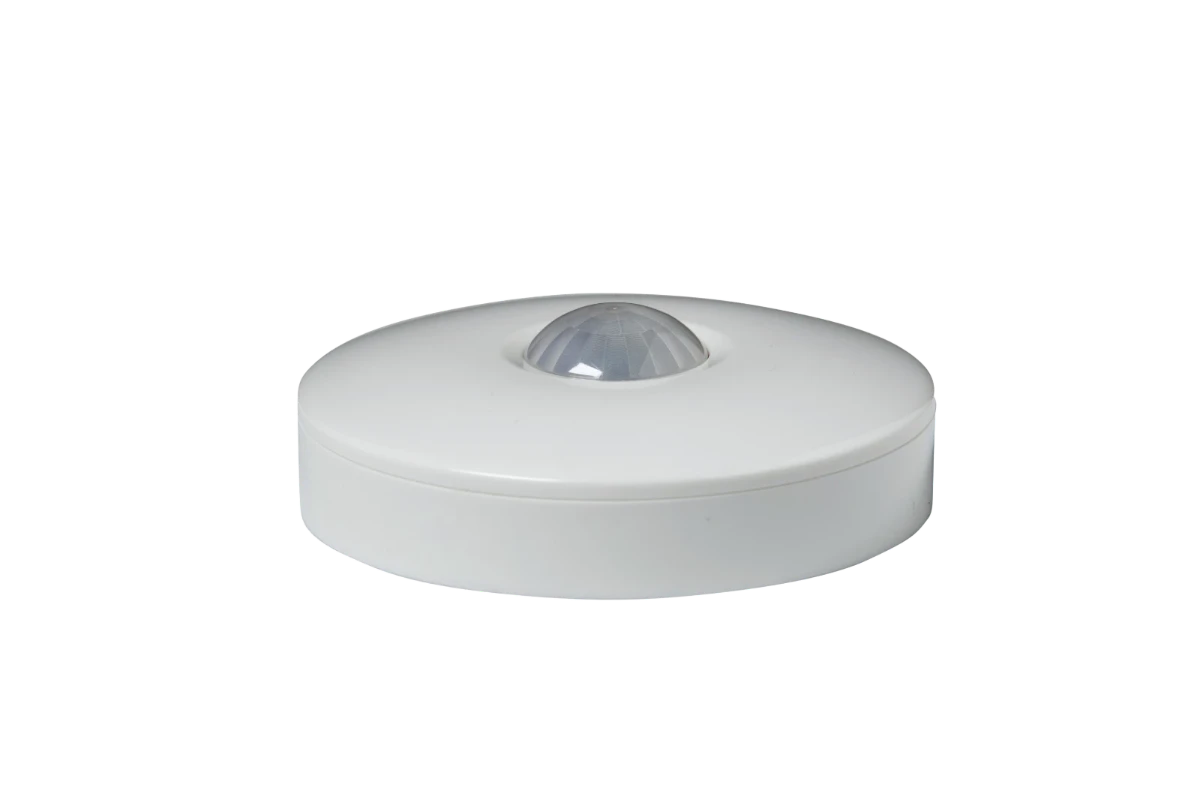

PROTON 360 Degree PIR Surface IP20 White




Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Detection range 360°, detection distance 12m at 2.8m mounting height
- Adjustable time delay of 10sec to 15min ensures that lighting is switched off after required delay
- Maximum LED load of 150W with no minimum load requirements
- Maximum Fluorescent load of 500W
- Maximum Resistive load of 1600W
- Adjustable passive photocell of 10lx to 2000lx; inhibits switching where natural light is sufficient
- Large push-in connector block with twin terminals allowing loop in/loop out to parallel sensors or multiple fittings
- Passive infra red technology ensures lighting is switched off when the area is vacated and minimizes false triggering
- High load contact rating allows multiple fittings to be switched
- Suitable for surface applications
