- PROTON UNIVERSAL 360 Degree PIR, Recessed/Surface, 106mm, IP20, White
RU360-01

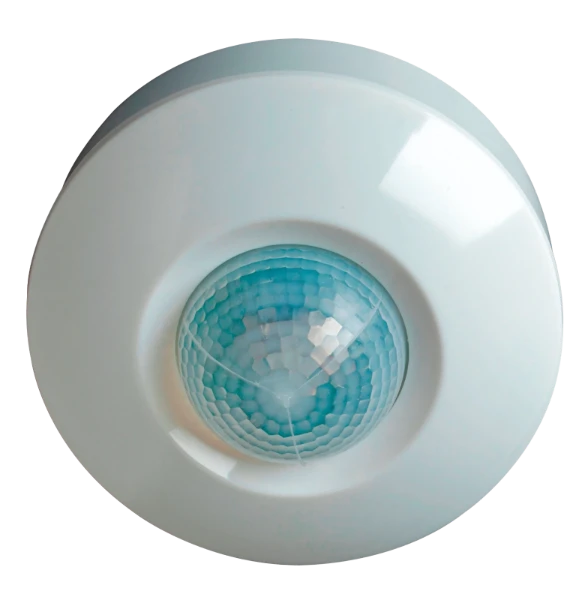

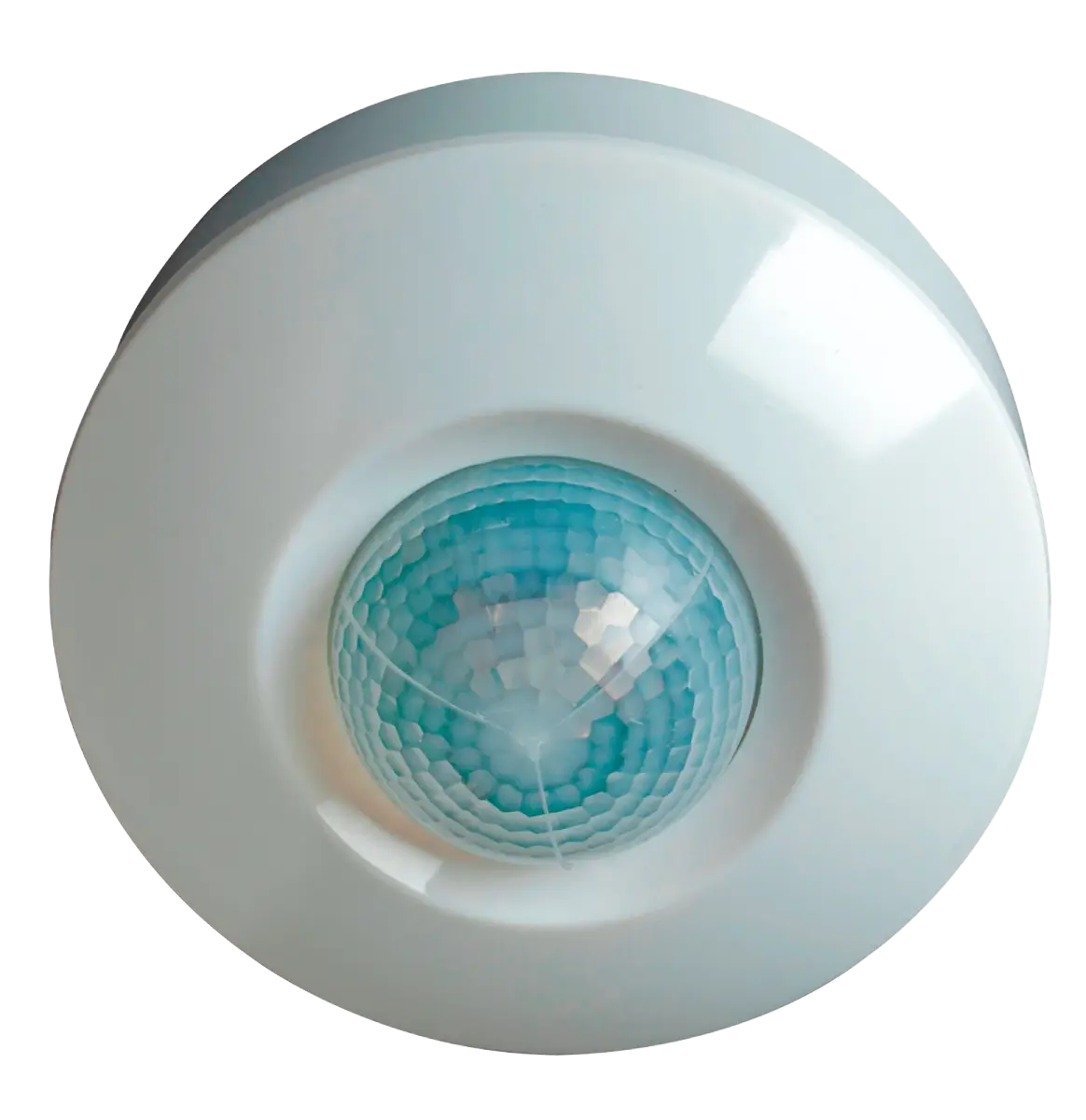

PROTON UNIVERSAL 360 Degree PIR
Recessed/Surface 106mm IP20 White
Features and benefits
Tech specs
Downloads
Accessories
How to videos
Case studies
- Suitable for both surface and recessed indoor applications
- Injection moulded ABS body - impact resistant
- Plug in terminal block and sensor module
- Large terminals accept 2 x 1.5mm² conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings
- Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay
- Adjustable lux setting of 10 to 2000lx
- Detection range 360°, detection distance 10m at 2.8m mounting height
- Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering
- Adjustable passive photocell; inhibits switching where natural light is sufficient
- High load contact rating; allows numerous fittings to be switched
- Maximum LED load of 300W
- Maximum Fluorescent load of 600W
- Maximum Resistive load of 2000W
- IP rating: surface mounted IP44, recessed IP20
